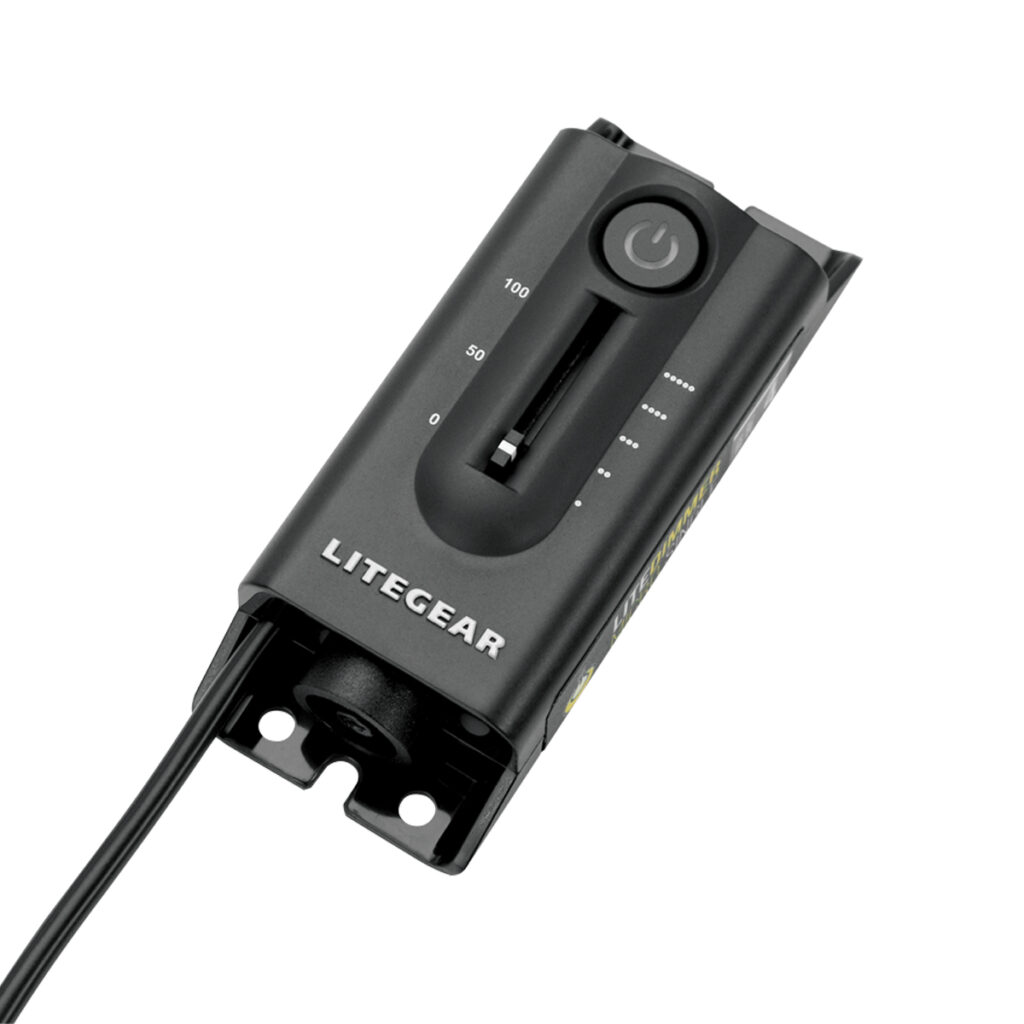

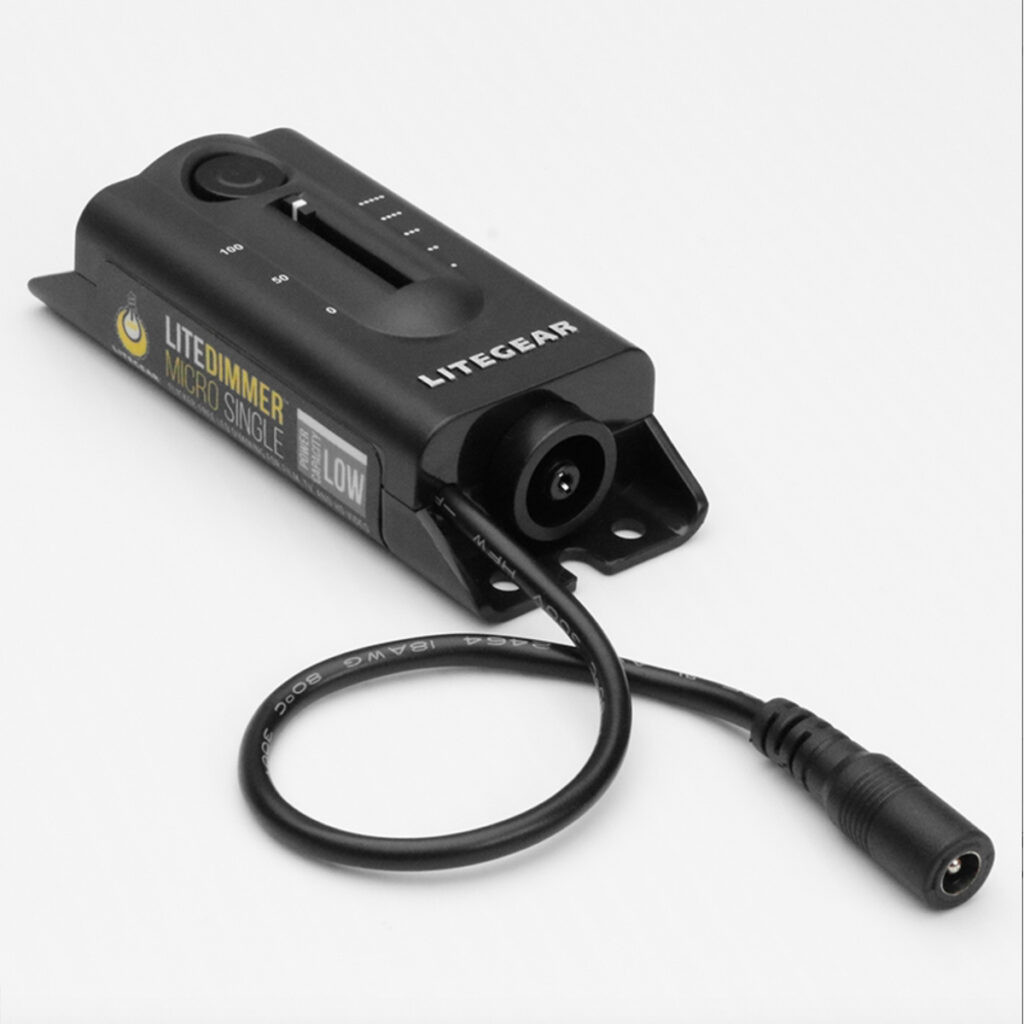

LiteDimmer Micro Single

LiteDimmer Micro Single is our entry-level, handheld LED dimmer. As the most basic of LiteGear’s LiteDimmers, it is lightweight and travel-friendly, making it perfect for situations requiring small amounts of single-color LiteRibbon or simply for those on a budget. Its simple yet powerful approach to controlling brightness maintains LiteGear’s standard of performance and quality while allowing the kind of flexibility demanded from lighting professionals. For best results, use with LiteGear LEDs which incorporate current limiting. Additional devices may be required.



[section label=”Simple Light” bg_color=”rgb(245, 245, 245)” padding=”0px” height=”0px” border=”1px 0px 0px 0px” border_color=”rgb(235, 235, 235)”]

[gap]

Downloads

[row style=”collapse” width=”custom” custom_width=”500px” v_align=”equal” h_align=”center” padding=”0 0px 0px 0px”]

[col span=”4″ span__sm=”12″ align=”center”]

[ux_image_box img=”27654″ image_height=”100%” image_width=”50″ link=”https://lca.peterfraher.com/wp-content/uploads/2020/03/LiteGear-LiteDimmers.pdf” target=”_blank”]

Data Sheet

[/ux_image_box]

[/col]
[col span=”4″ span__sm=”12″]

[ux_image_box img=”27654″ image_width=”50″ link=”https://lca.peterfraher.com/wp-content/uploads/2020/03/LiteDimmer-Micro-Single-User-Guide.pdf” target=”_blank”]

User Guide

[/ux_image_box]

[/col]

[/row]

[/section]

Featuresrn

rn t
• LiteDimmer Micro Single is programmed with the ability to set an adjustable fade time when turning your LiteRibbon on and off.
rn t
• u201cAaaaand Action!u201d Cueing: After setting the fade time, this dimmer function allows for the LiteRibbon to be brought up on cue.
rn t
• From STANDBY: When the cue is given, release the u201cPoweru201d button, and the LiteRibbon will fade on (with the set fade time) to the desired brightness.
rn t
• From ON: When the cue is given, release the u201cPoweru201d button, and the LiteRibbon will fade off (with the set fade time).
rn

SIZE: 4 in. x 1.625 in. x 1.125 in.rnWEIGHT: 0.137 lb, 2.187 oz, 62 grnINPUT: 8~30VDC; input voltage must match load voltage requirements!rnRATING: 4 amps max. totalrnCONNECTOR: Barrel, 2.1 mm x 5.5 mmrnOUTPUT: DynaRythmic PWM; does not provide u201ccurrent limiting.u201drnrnFor use with LiteGear products only.
