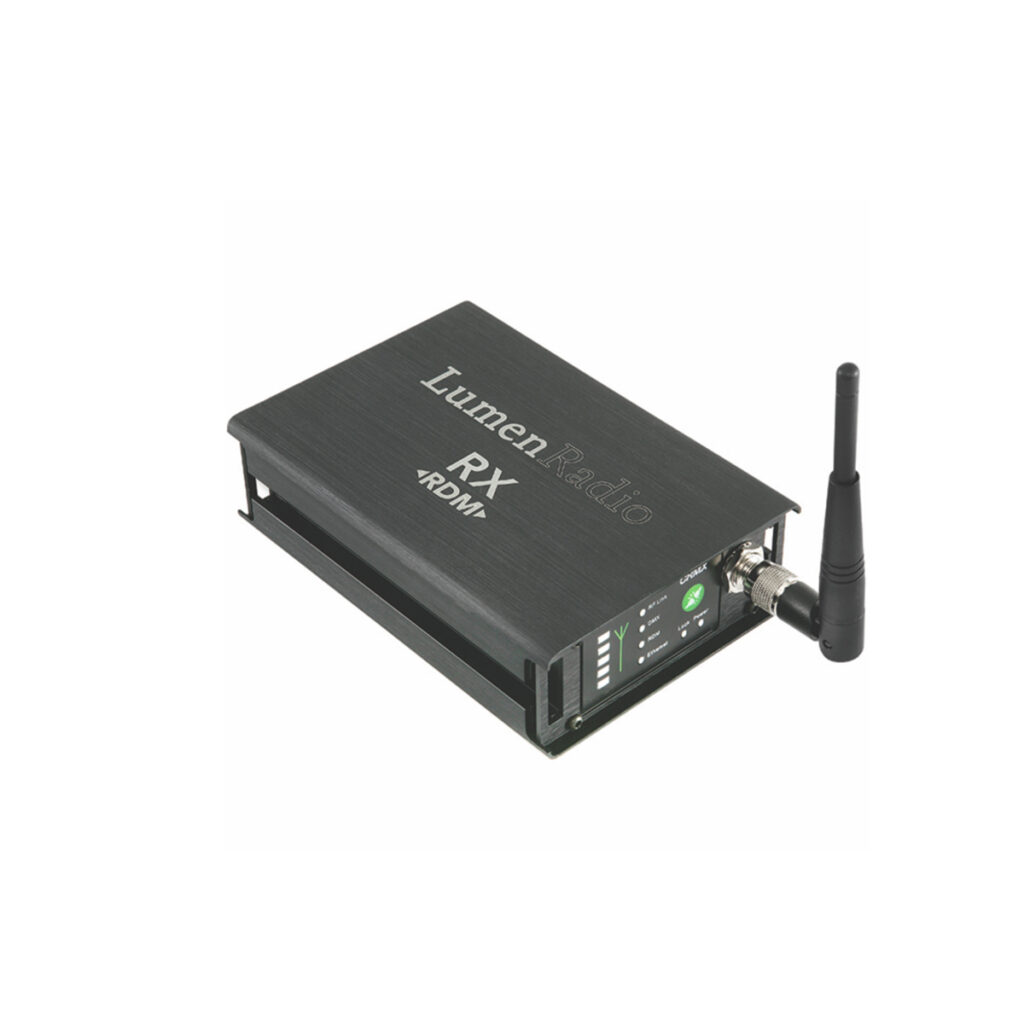

CRMX Nova RX RDM

CRMX Nova RX RDM is a receiver for one DMX/RDM universe being transmitted by any CRMX transmitter. It supports one full DMX/RDM universe of up to 512 channels at maximum refresh rate. Together with a RDM compliant CRMX Nova transmitter, the CRMX Nova RX RDM also supports RDM (ANSI E1.20). Use it together with their prized CRMX SuperNova RDM controller and management software to monitor signal strength and make settings from a remote location. Connect it to any RDM enabled fixture to get wireless feedback from the fixture.

Based on their advanced CRMX technology, the CRMX Nova RX RDM brings you all the advanced features such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms, 128 bit encryption and much more. In addition to this, you will get the possibility to configure and monitor your fixtures over RDM, without having to drag a cable. To fit into old wireless systems with legacy equipment, the CRMX Nova RX RDM is compatible with W-DMX™ transmitters working on the 2.4 GHz band. Using it in this way will not allow you to make use of the benefits of the advanced CRMX technology or RDM.

CRMX Nova RX RDM is compatible with all other CRMX products, both indoor and outdoor, DMX and RDM.

CRMX Nova RX RDM utilises the international license free ISM band on 2.4GHz.

rn t
• USITT DMX512, DMX512(1990) & DMX512-A
rn t
• RDM ANSI E1.20
rn

rn t
• High voltage input: 85-264VAC / 47-70Hz / 10W
rn t
• Low voltage input: 12VDC u00b120% / 2.5W
rn t
• Overvoltage and ESD protected power inputs
rn

rn t
• Dimensions (W x H x D): 110 x 44 x 125 mm (4.3u2033 x 1,7u2033 x 6.3u2033)
rn t
• Weight: 700g, 24oz
rn t
• Enclosure: Anodized extruded aluminum
rn

rn t
• Operational frequency range: 2402-2480 MHz
rn t
• Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
rn t
• Tested link range: up to 1000 meters line-of-sight
rn

rn t
• DMX: 1 XLR Neutriku00ae 5-pin gold plated female
rn t
• Antenna: RP-TNC male
rn t
• AC: IEC 320-C14 male
rn t
• DC: Pluggable terminal strip, Phoenixu00ae MSTD 2,5
rn
