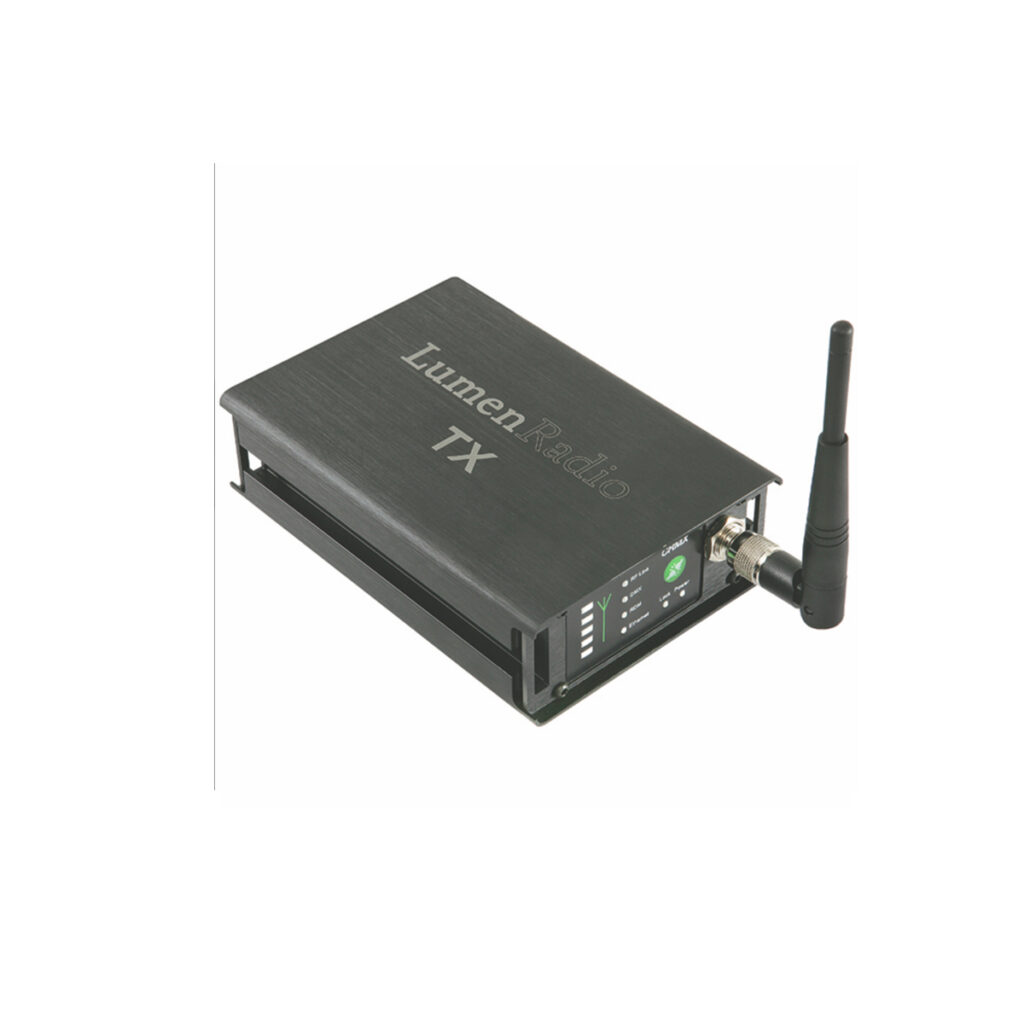

CRMX Nova TX
CRMX Nova TX is a DMX transmitter for one DMX universe of up to 512 channels at maximum refresh rate.
Available from France
Overview
CRMX Nova TX is a DMX transmitter for one DMX universe of up to 512 channels at maximum refresh rate. Multiple CRMX TX units can be used together to transmit multiple DMX universes, allowing for easy system expansion.
Based on their advanced CRMX technology, the CRMX Nova TX brings you all the advanced features such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms, 128 bit encryption and much more. Multiple CRMX Nova TX units can be combined to transmit several DMX universes, allowing easy system expansion. The CRMX Nova TX is compatible with all other CRMX products, both indoor and outdoor, DMX and RDM.
CRMX Nova utilises the international license free ISM band on 2.4GHz.
Specifications
- rn t
- USITT DMX512, DMX512(1990) & DMX512-A rn
- rn t
- High voltage input: 85-264VAC / 47-70Hz / 10W rn t
- Low voltage input: 12VDC u00b120% / 4W rn t
- Overvoltage and ESD protected power inputs rn
- rn t
- Dimensions (W x H x D): 110 x 44 x 125 mm (4.3u2033 x 1,7u2033 x 6.3u2033) rn t
- Weight: 700g, 24oz rn t
- Enclosure: Anodized extruded aluminum rn
- rn t
- Operational frequency range: 2402-2480 MHz rn t
- Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm) rn t
- Tested link range: up to 1000 meters line-of-sight rn
- rn t
- DMX: 1 XLR Neutriku00ae 5-pin gold plated male (self terminated) rn t
- Antenna: RP-TNC male rn t
- AC: IEC 320-C14 male rn t
- DC: Pluggable terminal strip, Phoenixu00ae MSTD 2,5 rn
