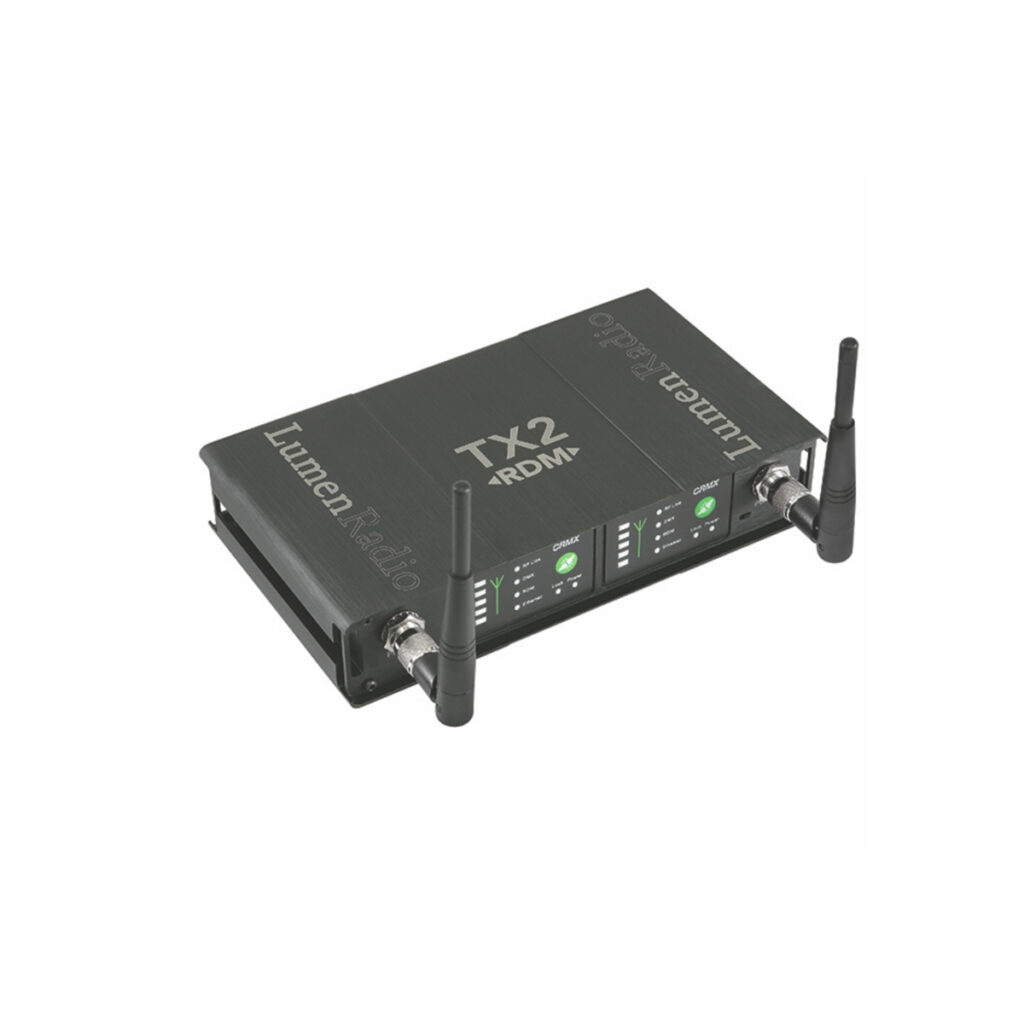

CRMX NOVA TX2 RDM

CRMX Nova TX2 RDM is a DMX/RDM transmitter for two DMX/RDM universes of up to 1024 channels at maximum refresh rate. With extensive support for Ethernet based protocols, it can not only transmit any protocol to listening CRMX receivers, but also act as a wired protocol converter at the same time. Any protocol, both DMX and Ethernet, can be used in any direction. Input DMX and output Ethernet, or the other way around. Merge DMX and Ethernet for redundancy. Use it together with their prized CRMX SuperNova RDM controller and management software, or as an RDM proxy with any other RDM compliant controller on the market.

Based on our advanced CRMX technology, the CRMX Nova TX2 RDM brings you all the advanced features such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms, 128 bit encryption and much more. With support for CRMX Unity, the CRMX Nova TX2 RDM can act as a cross-protocol hub in any DMX system, wired or wireless. Multiple CRMX Nova TX2 RDM units can be combined to transmit several DMX/RDM universes, allowing easy system expansion. The CRMX Nova TX2 RDM is compatible with all other CRMX products, both indoor and outdoor, DMX and RDM.

CRMX Nova TX2 RDM utilises the international license free ISM band on 2.4GHz.

rn t
• USITT DMX512, DMX512(1990) & DMX512-A
rn t
• RDM ANSI E1.20 (Controller and Proxy)
rn t
• Streaming ACN (Draft and Final)
rn t
• ArtNet I, II & 3
rn t
• Pathport
rn t
• Strand ShowNet
rn t
• ETCNet 2 & 3
rn t
• KiNet V1 & V2
rn

rn t
• High voltage input: 85-264VAC / 47-70Hz / 22W
rn t
• Low voltage input: 12VDC u00b120% / 12W
rn t
• Overvoltage and ESD protected power inputs
rn t
• PoE, Power over Ethernet
rn

rn t
• Dimensions (W x H x D): 220 x 44 x 160 mm (8.6u2033 x 1.7u2033 x 4.9u2033)
rn t
• Weight: 900g, 30oz
rn t
• Enclosure: Anodised extruded aluminum
rn

rn t
• Operational frequency range: 2402-2480 MHz
rn t
• Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
rn t
• Tested link range: up to 1000 meters line-of-sight
rn

rn t
• DMX: 2 XLR Neutriku00ae 5-pin gold plated male (self terminated)
rn t
• Antenna: 2 RP-TNC male
rn t
• Ethernet: 1 Neutriku00ae Etherconu2122 RJ45
rn t
• AC: IEC 320-C14 male
rn t
• DC: Pluggable terminal strip, Phoenixu00ae MSTD 2,5
rn
